Grant Vortex Pro 21 21kW Floor Standing Combination Boiler Oil ErP – VTXCOMBI21

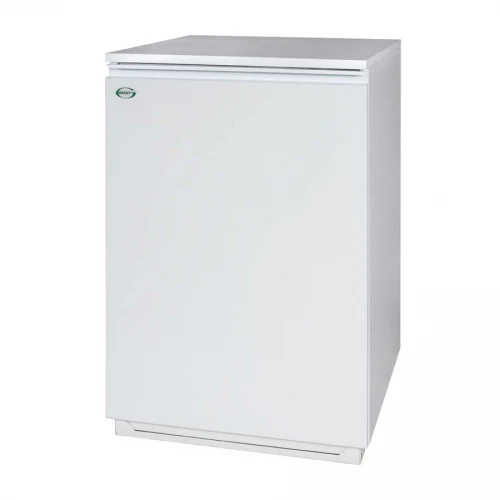

Grant Vortex Pro 21 Floor Standing Combination Boiler Oil ErP

ErP Oil Combi Boiler

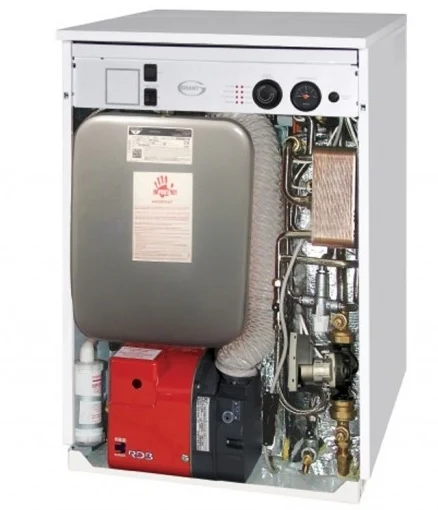

The Grant Vortex 21kW Combi model features internal frost protection, 24ltr expansion vessel, neon diagnostic indicators and a factory fitted internal condensate trap (this can be sited externally if preferred), designed to make installation and servicing easier. The Grant Vortex Pro Electronic Condensing Combi boilers are available in three sizes – 21kW, 26kW and 36kW.

Grant Vortex Pro 21kW Combi’s have larger plate heat exchangers which due to their low water content and great surface area, vastly increase hot water performance. Mixing valves on the unit are pre-set at 50°C, which accurately control the hot water draw off temperature from the boiler. They also include a low system pressure cut off switch, enabling the combi to protect itself in the event of system water loss. Additionally, there are two very intelligent electronic temperature controls which allow the boiler to operate in condensing mode on central heating, whilst keeping the instant production of hot water.

Features

• Available in four models – 21kW, 26kW, 26kW XS and 36kW.
• Suitable for kitchen installations
• 26kW Combi XS model only 515mm wide
• 24ltr expansion vessel on all models
• Neon diagnostic indicators
• High efficiency circulating pump
• Simple and quick to install with no complicated wiring or plumbing
• Unique Grant Vortex stainless steel heat exchanger
• Extremely compact design
• Riello RDB burner (with plug & socket connection)
• Efficiency: 89.5 – 91.6% GROSS (SAP2009)

Typical Hot Water Performance

VTXCOMBI21*
15 litres per minute at an average temperature of 50°C
Recovery time 4 minutes approx. Based upon 100 litre draw off.

*Hot water flow rate is dependant on mains pressure available. Figures based upon an incoming mains water temperature of 10°C.

Selecting the correct sort of Boiler is a major decision. Once you determine that Oil Combi Boilers are the best answer then the Grant Vortex Pro 21 Floor Standing Combination Boiler Oil ErP – VTXCOMBI21 is clearly worth a serious look.
